محصولات جدید

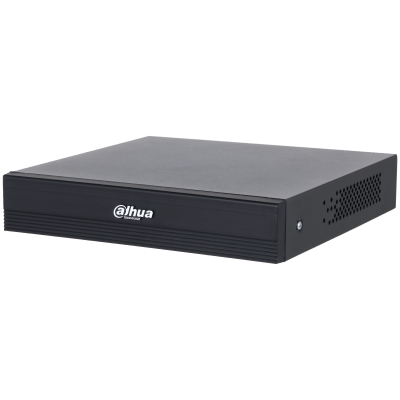

دستگاه 4 کانال XVR داهوا مدل XVR 1B04
موجود است
وزن | 550 g |
---|---|
برند | DH-XVR-1B04, داهوا (Dahua) |
اقلام همراه دستگاه | آداپتور برق, راهنمای نصب فارسی, موس سیمی |
انتقال تصویر | yes |
نرم افزار انتقال تصویر | gDMSS اپلیکیشن برای موبایل اندروید, iDMSS اپلیکیشن برای موبایل آیفون و سیستم عامل های IOS |
پردازنده دستگاه ضبط کننده | Embedded processor, نوع سیستم عامل Embedded linux |
پروتکل های قابل پشتیبانی دستگاه | HDCVI/AHD/TVI/CVBS/IP, HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
پورت های ورودی و خروجی | 4 channels, 4 channels, BNC, Supports HDCVI/AHD/TVI/CVBS/IP video inputs, از ورودی های ویدئویی HDCVI/AHD/TVI/CVBS/IP پشتیبانی می کند |
تعداد پلی بک | 4, 4 channels, BNC |
توضیحات | 1 HDMI 1 VGA, HDMI-VGA |
رزولوشن دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
فرمت | HDCVI/AHD/TVI/CVBS/IP |
کیفیت ضبط تصاویر در دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, HDCVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps AHD Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps TVI Camera Input 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps |
کیفیت تصاویر خروجی دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
نوع دستگاه بر حسب کانال و صدا و پلی بک | 4 کانال, 4 کانال – 4 پلی بک – 4 ورودی صدا ( 4Channel / 4 Audio / 4 PlayBack ) |
نوع گارانتی | محصول دارای 2 سال معتبرترین گارانتی اصلی می باشد |
هارد دیسک دستگاه (Hard-Disk) | 1 SATA port, up to 6 TB capacity, H.265+/H.265 dual-stream video compression, فشرده سازی ویدیوی دو جریانی H.265+/H.265 |
تعداد هارددیسک قابل نصب درون دستگاه | یک عدد هارد |
NVR هشت کانال هایک ویژن مدل DS-7608NI-K1
موجود است
Human/Vehicle Analysis | 4-ch |
---|---|
IP Video Input | 8-ch |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K(4096×2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 1 SATA interface |
Capacity | Up to 8 TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 1.5 A |
Consumption | ≤ 10 W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
NVR هایک ویژن مدل DS-7616NXI-I2/S
موجود است
Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 256 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | ≤ 40 W |
Consumption | ≤ 15W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
AI By NVR | Facial recognition, perimeter protection, motion detection 2.0 |
AI By Camera | Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
Engine | 1, engine mode is adjustable |
Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
Face Picture Comparison | 4-ch face picture comparison alarm |
Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
Facial Detection And Analytics PerformanceFacial Detection And Analytics Performance | 1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265) |
By NVR | 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
By Camera | All channels |
Live View Window Division | 1/4/6/8/9/16 |
Aux Port Window Division | 1/4/6/8/9/16 |
پرفروش ترین محصولات
دستگاه 4 کانال XVR داهوا مدل XVR 1B04
موجود است
وزن | 550 g |
---|---|
برند | DH-XVR-1B04, داهوا (Dahua) |
اقلام همراه دستگاه | آداپتور برق, راهنمای نصب فارسی, موس سیمی |
انتقال تصویر | yes |
نرم افزار انتقال تصویر | gDMSS اپلیکیشن برای موبایل اندروید, iDMSS اپلیکیشن برای موبایل آیفون و سیستم عامل های IOS |
پردازنده دستگاه ضبط کننده | Embedded processor, نوع سیستم عامل Embedded linux |
پروتکل های قابل پشتیبانی دستگاه | HDCVI/AHD/TVI/CVBS/IP, HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
پورت های ورودی و خروجی | 4 channels, 4 channels, BNC, Supports HDCVI/AHD/TVI/CVBS/IP video inputs, از ورودی های ویدئویی HDCVI/AHD/TVI/CVBS/IP پشتیبانی می کند |
تعداد پلی بک | 4, 4 channels, BNC |
توضیحات | 1 HDMI 1 VGA, HDMI-VGA |
رزولوشن دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
فرمت | HDCVI/AHD/TVI/CVBS/IP |
کیفیت ضبط تصاویر در دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, HDCVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps AHD Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps TVI Camera Input 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps |
کیفیت تصاویر خروجی دستگاه | 1920 × 1080, 1280 × 1024, 1280 × 720, 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
نوع دستگاه بر حسب کانال و صدا و پلی بک | 4 کانال, 4 کانال – 4 پلی بک – 4 ورودی صدا ( 4Channel / 4 Audio / 4 PlayBack ) |
نوع گارانتی | محصول دارای 2 سال معتبرترین گارانتی اصلی می باشد |
هارد دیسک دستگاه (Hard-Disk) | 1 SATA port, up to 6 TB capacity, H.265+/H.265 dual-stream video compression, فشرده سازی ویدیوی دو جریانی H.265+/H.265 |
تعداد هارددیسک قابل نصب درون دستگاه | یک عدد هارد |
NVR هشت کانال هایک ویژن مدل DS-7608NI-K1
موجود است
Human/Vehicle Analysis | 4-ch |
---|---|
IP Video Input | 8-ch |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K(4096×2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 1 SATA interface |
Capacity | Up to 8 TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 1.5 A |
Consumption | ≤ 10 W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
NVR هایک ویژن مدل DS-7616NXI-I2/S
موجود است
Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 256 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | ≤ 40 W |
Consumption | ≤ 15W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
AI By NVR | Facial recognition, perimeter protection, motion detection 2.0 |
AI By Camera | Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
Engine | 1, engine mode is adjustable |
Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
Face Picture Comparison | 4-ch face picture comparison alarm |
Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
Facial Detection And Analytics PerformanceFacial Detection And Analytics Performance | 1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265) |
By NVR | 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
By Camera | All channels |
Live View Window Division | 1/4/6/8/9/16 |
Aux Port Window Division | 1/4/6/8/9/16 |
دوربین های تحت شبکه هایک ویژن
دوربین 4 مگاپیکسلی هایک ویژن DS-2CD1043G0-I
موجود است
Image Sensor | 1/3" progressive scan CMOS |
---|---|
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
Lens Mount | M12 |
Aperture | F2.0 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | plastic |
Dimension | 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7") |
Package Dimension | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
Weight | Approx. 270 g (0.6 lb.) |
With Package Weight | Approx. 490 g (1.1 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Built-In Microphone | Yes |
دوربین 4 مگاپیکسلی هایک ویژن DS-2CD1143G0-IUF
موجود است
Image Sensor | 1/3" progressive scan CMOS |
---|---|
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
Lens Mount | M12 |
Aperture | F2.0 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Body: aluminum alloy, bubble: plastic |
Dimension | Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3") |
Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
Weight | Approx. 530 g (1.2 lb.) |
With Package Weight | Approx. 720 g (1.6 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Built-In Microphone | Yes |
دوربین 4 مگاپیکسلی هایک ویژن مدل DS-2CD1743G0-IZ
موجود است
Image Sensor | 1/3" progressive scan CMOS |
---|---|
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Varifocal Lens, motoried lens, 2.8 to 12 mm |
Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35° |
Lens Mount | Ø14 |
Aperture | F1.6 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Metal |
Dimension | Ø141 mm × 99.9 mm (Ø5.6" × 3.9") |
Package Dimension | 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1") |
Weight | Approx. 820 g (1.8 lb.) |
With Package Weight | Approx. 1200 g (2.6 lb.) |
Storage Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Built-In Microphone | Yes |
دوربین 4 مگاپیکسلی هایک ویژن مدل DS-2CD2347G2-L(2.8mm)
موجود است
Image Sensor | 1/1.8" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
Lens Mount | M16 |
Aperture | F2.0 |
Supplement Light Type | White Light |
Supplement Light Range | Up to 30 m |
Depth Of Field | 2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞ |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Auto, Schedule |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Body: aluminum alloy, bubble: plastic |
Dimension | Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9") |
Package Dimension | 170 mm × 170 mm × 150 mm (7" × 7" × 5.9") |
Weight | Approx. 750 g (1.7 lb.) |
With Package Weight | Approx. 1055 g (2.3 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Wide Dynamic Range (WDR) | 130 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Built-In Microphone | Yes |
دوربین مداربسته هایک ویژن مدل DS-2CD1323G0E-I
موجود است
Image Sensor | 1/2.7" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100, 000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
Lens Mount | M12 |
Aperture | F2.0 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Built-In Microphone | -U: Yes |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Metal & Plastic |
Dimension | Ø110 mm × 82.4 mm (Ø4.4" × 3.2") |
Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
Weight | Approx. 410 g (0.9 lb.) |
With Package Weight | Approx. 610 g (1.3 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
دوربین مداربسته هایک ویژن مدل DS-2CD1327G0-L
موجود است
Image Sensor | 1/2.8" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
Shutter Time | 1/3 s to 1/100,000 s |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Focal Length & FOV | 2.8mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° |
Depth Of Field | 2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞ |
Lens Mount | M12 |
Iris Type | Fixed |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
Main Stream | 50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream | 50 Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | BaseLine Profile/Main Profile/High Profile |
Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
Day/Night Switch | Day, Night, Auto, Schedule |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | BLC, HLC, 3D DNR |
Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Language | English |
Basic Event | Motion detection, exception (illegal login) |
Power | 12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W |
Dimension | Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") |
Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
Weight | Approx. 370 g (0.82 lb.) |
With Package Weight | Approx. 580 g (1.28 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
On-Board Storage | -UF: Built-in memory card slot, support microSD card, up to 256 GB |
Built-In Microphone | -UF: Yes |
Hardware Reset | -UF: Yes |
دوربین مداربسته هایک ویژن مدل DS-2CD2123G2-I
موجود است
Image Sensor | 1/2.8" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104° |
Lens Mount | M12 |
Aperture | F1.6 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Built-In Microphone | -U: Yes |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Body: aluminum alloy, bubble: plastic |
Dimension | Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3") |
Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
Weight | Approx. 530 g (1.2 lb.) |
With Package Weight | Approx. 720 g (1.6 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
دوربین مداربسته هایک ویژن مدل DS-2CD2T63G2-2I
موجود است
Image Sensor | 1/2.4" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
Lens Mount | M12 |
Aperture | F1.6 |
Supplement Light Type | White Light |
Supplement Light Range | Up to 30 m |
Depth Of Field | 2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞ |
Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Auto, Schedule |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Body: aluminum alloy, bubble: plastic |
Dimension | Ø105 mm × 299.7 mm (Ø4.1" × 11.8") |
Package Dimension | 386 mm× 156 mm × 155 mm (15.2" × 6.2" × 6.2") |
Weight | Approx. 1065 g (2.4 lb.) |
With Package Weight | Approx. 1560 g (3.5 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -S: Yes |
EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Built-In Microphone | Yes |
دوربین هایک ویژن DS-2CD1021G0E-I
موجود است
ابعاد | ۱۷۷.۶x۶۷.۸x۶۶.۲ میلیمتر |
---|---|
مشخصات ظاهری | بولت |
مشخصات اتصال | پورت اترنت RJ۴۵ ۱۰ M/۱۰۰ M Self-adaptive |
نوع حسگر تصویر | 1/2.7" Progressive Scan CMOS |
سایز حسگر تصویر | ۱/۲.۷ اینچ |
مشخصات حسگر تصویر | Progressive Scan |
نوع لنز | ثابت |
محدوده دیافراگم | F۲.۰ |
محدوده سرعت شاتر | ۱/۳ تا ۱/۱۰۰,۰۰۰ ثانیه |
رزولوشنهای تصویر | تا ۱۹۲۰x۱۰۸۰ |
قابلیتهای دوربین امنیتی و نظارتیقابلیتهای دوربین امنیتی و نظارتی | قابلیت چرخش Tilt قابلیت چرخش Pan دید در شب |
زاویه دید | ۱۳۲.۲ درجه |
توضیحات قابلیت دید در شب | طول موج IR معادل ۸۵۰ نانومتر / برد IR تا ۳۰ متر |
پروتکلها | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, ۸۰۲.۱X, QoS, IPv۶, Bonjour, IPv۴, UDP, SSL/TLS |
امنیت | UL (UL ۶۰۹۵۰-۱); CB (IEC ۶۰۹۵۰-۱:۲۰۰۵ + Am ۱:۲۰۰۹ + Am ۲:۲۰۱۳, IEC ۶۲۳۶۸-۱:۲۰۱۴); CE-LVD (EN ۶۰۹۵۰-۱:۲۰۰۵ + Am ۱:۲۰۰۹ + Am ۲:۲۰۱۳, IEC ۶۲۳۶۸-۱:۲۰۱۴); BIS (IS ۱۳۲۵۲(Part ۱):۲۰۱۰+A۱:۲۰۱۳+A۲:۲۰۱۵) |
گواهینامه ها | IP۶۷ |
منبع تغذیه | ۱۲ VDC |
سایر قابلیت ها و توضیحات | نسخه فریمور: V۵.۵.۱۲۰ / قابلیت تشخیص اشیا متحرک / قابلیت تنظیم چرخه روز و شب / پشتیبانی از ۶ کانال به صورت همزمان |
دوربین هایک ویژن DS-2CD2023G2-I
موجود است
Image Sensor | 1/2.8" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104° 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° |
Lens Mount | M12 |
Aperture | F1.6 |
Depth Of Field | 2.8 mm: 1 m to ∞ 4 mm: 1.2 m to ∞ 6 mm: 2.8 m to ∞ |
Supplement Light Type | IR |
Supplement Light Range | Up to 40 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Bit Rate Control | CBR,VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -U: Yes |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Day/Night Switch | Day,Night,Auto,Schedule |
Wide Dynamic Range (WDR) | 120 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Built-In Microphone | -U: Yes |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Metal |
Dimension | Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1") |
Package Dimension | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
Weight | Approx. 500 g (1.1 lb.) |
With Package Weight | Approx. 750 g (1.7 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
دوربین هایک ویژن مدل DS-2CD1027G0-L
موجود است
Image Sensor | 1/2.8" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
Shutter Time | 1/3 s to 1/100,000 s |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Focal Length & FOV | 2.8mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° |
Depth Of Field | 2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞ |
Lens Mount | M12 |
Iris Type | Fixed |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
Main Stream | 50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream | 50 Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | BaseLine Profile/Main Profile/High Profile |
Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
Day/Night Switch | Day, Night, Auto, Schedule |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | BLC, HLC, 3D DNR |
Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Language | English |
Basic Event | Motion detection, exception (illegal login) |
Power | 12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W |
Dimension | 68.4 × 65.2 × 161.1 mm (2.7" × 2.6" × 6.3") |
Package Dimension | 172 × 104 × 80 mm (6.8" × 4.1" × 3.1") |
Weight | Approx. 420 g (0.9 lb.) |
With Package Weight | Approx. 510g (1.1 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
دوربین هایک ویژن مدل DS-2CD1123G0E-I
موجود است
Image Sensor | 1/2.7" Progressive Scan CMOS |
---|---|
Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100, 000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
Lens Mount | M12 |
Aperture | F2.0 |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Image Parameters Switch | Yes |
Day/Night Switch | Day,Night,Auto,Schedule |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
Built-In Microphone | -U: Yes |
Reset Key | Reset Key |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W |
Material | Metal & Plastic |
Dimension | Ø110 mm × 82.4 mm (Ø4.4" × 3.2") |
Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
Weight | Approx. 410 g (0.9 lb.) |
With Package Weight | Approx. 610 g (1.3 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
دستگاه های ضبط کننده تحت شبکه هایک ویژن
NVR هشت کانال هایک ویژن مدل DS-7608NI-K1
موجود است
Human/Vehicle Analysis | 4-ch |
---|---|
IP Video Input | 8-ch |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K(4096×2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 1 SATA interface |
Capacity | Up to 8 TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 1.5 A |
Consumption | ≤ 10 W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
دستگاه هایک ویژن DS-7616NI-K1
موجود است
Human/Vehicle Analysis | 4-ch |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 16-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 8TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 1.5 A |
Consumption | ≤ 10 W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight | ≤ 1 kg (2.2 lb) |
ان وی ار 16 کانال هایک ویژن DS-7616NI-Q2
موجود است
Human/Vehicle Analysis | 8-ch |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 8TB capacity for each disk |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 1.5 A |
Consumption | ≤ 10 W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
Weight | ≤ 1.8 kg (4.0 lb) |
ان وی آر 16 کانال هایک ویژن مدل DS-7616NI-K2
موجود است
Human/Vehicle Analysis | 8-ch |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 12 VDC, 3.33A |
Consumption | ≤ 15 W (without HDD) |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
دستگاه NVR هایک ویژن مدل DS-7632NI-K2
موجود است
IP Video Input | 32-ch |
---|---|
Outgoing Bandwidth | 160 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 16-ch |
Decoding Capability | 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 128-ch |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | 4/1 |
USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Power Supply | 12 VDC, 3.33A |
Consumption | ≤ 15 W (without HDD) |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
دستگاه هایک ویژن مدل DS-7616NI-K2/16P
موجود است
Human/Vehicle Analysis | 8-ch |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 160 Mbps |
HDMI Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
VGA Output | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA independent output |
Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 8*1080P |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | 100 to 240 VAC, 50 to 60Hz |
Consumption | ≤ 15 W (without HDD and PoE off) |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 3 kg (without HDD, 6.6 lb.) |
PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 200 W |
Standard | IEEE 802.3 af/at |
CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
ان وی ار 32 کانال هایک ویژن مدل DS-7732NI-K4
موجود است
IP Video Input | 32-ch |
---|---|
Outgoing Bandwidth | 160 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 16-ch |
Decoding Capability | 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 128-ch |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
SATA | 4 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | 16/4 (16/9 is optional) |
USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
Power Supply | 100 to 240 VAC, 50 to 60Hz |
Consumption | ≤ 20 W (without HDD) |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
Weight | ≤ 5 kg (without HDD, 11 lb.) |
NVR هایک ویژن مدل DS-7616NXI-I2/S
موجود است
Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
---|---|
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 256 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Remote Connection | 32 |
Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
Alarm In/Out | N/A |
USB Interface | Rear panel: 2 × USB 2.0 |
Power Supply | ≤ 40 W |
Consumption | ≤ 15W |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
AI By NVR | Facial recognition, perimeter protection, motion detection 2.0 |
AI By Camera | Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
Engine | 1, engine mode is adjustable |
Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
Face Picture Comparison | 4-ch face picture comparison alarm |
Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
Facial Detection And Analytics PerformanceFacial Detection And Analytics Performance | 1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265) |
By NVR | 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
By Camera | All channels |
Live View Window Division | 1/4/6/8/9/16 |
Aux Port Window Division | 1/4/6/8/9/16 |
دوربین های تحت شبکه اپلینکس
دوربین تحت شبکه اپلینکس مدل IPC-B102-A
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | 0.02 Lux ،F1.6 |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | Digital WDR |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F2.0, Fixed |
میدان دید | Horizontal field of view: 83.3° Vertical field of view: 46.8° |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
محدوده فرکانس | 2.4GHz ~ 2.4835 GHz |
کانال کاری | 20/40MHz |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | DC 12V±25% |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
دوربین تحت شبکه اپلینکس مدل IPC-B102-A-JP
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | 0.02 Lux ،F1.6 |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | Digital WDR |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F2.0, Fixed |
میدان دید | Horizontal field of view: 83.3° Vertical field of view: 46.8° |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
محدوده فرکانس | 2.4GHz ~ 2.4835 GHz |
کانال کاری | 20/40MHz |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | ندارد |
شیار کارت حافظه | ندارد |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | POE |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
دوربین تحت شبکه اپلینکس مدل IPC-B102-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | Digital WDR |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F2.0, Fixed |
میدان دید | Horizontal field of view: 83.3° Vertical field of view: 46.8° |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
محدوده فرکانس | 2.4GHz ~ 2.4835 GHz |
کانال کاری | 20/40MHz |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | DC 12V±25% |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 160.8 68×74.5mm |
وزن | 0.3Kg |
جنس بدنه | فلزی + پلاستیک |
دوربین تحت شبکه اپلینکس مدل IPC-B102-AS-WN
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | Digital WDR |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F2.0, Fixed |
میدان دید | Horizontal field of view: 83.3° Vertical field of view: 46.8° |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
استاندارد WiFi | IEEE802.11b/g/n |
محدوده فرکانس | 2.4GHz ~ 2.4835 GHz |
کانال کاری | 20/40MHz |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | DC 12V±25% |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 161mm×68mm×66mm |
وزن | 0.31Kg |
جنس بدنه | فلزی + پلاستیک |
دوربین تحت شبکه اپلینکس مدل IPC-B118M-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 2.8mm/4mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 96° (2.8mm)/84.8° (4mm) |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 3840×2160 |
Main Stream | (PAL: 20fps (3840×2160 |
Sub Stream | PAL: 25fps (704×576) |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC/Corridor Format |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 8 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter, Face Detection |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | DC 12V±25% |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 160.8x68x74.5mm |
وزن | 0.5Kg |
جنس بدنه | فلزی |
دوربین تحت شبکه اپلینکس مدل IPC-T118M-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 2.8mm/4mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 96° (2.8mm)/84.8° (4mm) |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 50 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32Kbps~6Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 3840×2160 |
Main Stream | (PAL: 20fps (3840×2160 |
Sub Stream | PAL: 25fps (704×576) |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC/Corridor Format |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 8 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter, Face Detection |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
پروتکل | 802.11b: CCK, QPSK, BPSK – 802.11g/n: OFDM/HT |
امنیت | WPA-PSK/WPA2-PSK |
نرخ انتقال | 802.11b: 11Mbps– 802.11g: 54Mbps– 802.11n: up to 150Mbps |
بُرد ارتباطی | ۵۰ متر (عملکرد بر اساس محیط متفاوت می باشد) |
توان | 802.11b: 17±1.5dBm@11Mbps– 802.11g: 14±1.5dBm@54Mbps– 802.11n: 12.5±1.5dBm@150Mbps |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
مصرف برق | MAX: 6.8W(12V) |
منبع تغذیه | DC 12V±25% |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 116.6×83.7mm |
وزن | 0.5Kg |
جنس بدنه | فلزی |
دوربین تحت شبکه اپلینکس مدل IPC-B104-A-JP
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 2.8mm/4mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 93.8° (2.8mm)/78° (4mm) |
IR LEDs | ۸ |
طول موج | 850nm |
قابلیت دید در شب | Up to 30 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 2592×1520 |
Main Stream | PAL: 25fps (2592×1520) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | N/A |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | -40 C to 60 C 95% RH |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 120x90mm |
وزن | 0.4Kg |
جنس بدنه | پلاستیک |
دوربین تحت شبکه اپلینکس مدل IPC-B214M-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 2.8mm/4mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 93.8° (2.8mm)/78° (4mm) |
IR LEDs | ۸ |
طول موج | 850nm |
قابلیت دید در شب | Up to 30 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 2592×1520 |
Main Stream | PAL: 25fps (2592×1520) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | N/A |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | -40 C to 60 C 95% RH |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 120x90mm |
وزن | 0.4Kg |
جنس بدنه | پلاستیک |
دوربین تحت شبکه اپلینکس مدل IPC-B215MB-ZAS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.0002Lux@ (F1.0, ACG ON), B/W: 0Lux with LED on |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Motorized |
فوکوس | 2.8-12mm |
پایه لنز | O14 |
دیافراگم | F1.6~F3.3, Fixed |
میدان دید | Horizontal field of view: 100.4°~26.8° |
IR LEDs | ۴ عدد |
طول موج | 850nm |
قابلیت دید در شب | Up to 80 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 2560×1440 |
Main Stream | PAL: 25fps (2560×1440) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | N/A |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | منفی ۳۰ تا ۶۵ درجه سانتیگراد ، رطوبت ۹۵ درصد |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 239x90x90mm |
وزن | 0.93Kg |
جنس بدنه | فلز |
دوربین تحت شبکه اپلینکس مدل IPC-B302B-A-LED
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.0002Lux@ (F1.0, ACG ON), B/W: 0Lux with LED on |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F1.0, Fixed |
میدان دید | Horizontal field of view: 90.7 |
IR LEDs | ۴ عدد (ال ای دی سفید) |
طول موج | نور سفید |
قابلیت دید در شب | ۲۰ الی ۳۰ متر |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 2560×1440 |
Main Stream | PAL: 25fps (2560×1440) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | N/A |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | -40 C to 60 C 95% RH |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 239x90x90mm |
وزن | 0.9Kg |
جنس بدنه | فلز |
دوربین تحت شبکه اپلینکس مدل IPC-B312-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 2.8mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 93.8° (2.8mm)/78° (4mm) |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 30 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | -40 C to 60 C 95% RH |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 160.8 68×74.5mm |
وزن | 0.3Kg |
جنس بدنه | فلزی + پلاستیک |
دوربین تحت شبکه اپلینکس مدل IPC-B312M-AS
موجود است
حسگر تصویر | ۱/۲.۸ |
---|---|
حداقل نور | Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR |
سرعت شاتر | 1s to 1/100,000s |
فیلتر IR Cut | Dual IR Cut Filter with Auto Switch |
قابلیت ضد نور (WDR) | 120db |
قابلیت تنظیم زاویه | Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
نوع لنز | Fixed |
فوکوس | 4mm |
پایه لنز | M12 |
دیافراگم | F1.6, Fixed |
میدان دید | Horizontal field of view: 93.8° (2.8mm)/78° (4mm) |
IR LEDs | ۲ |
طول موج | 850nm |
قابلیت دید در شب | Up to 30 m |
فرمت های ویدیویی | S+265/H.265/H.264 |
نرخ بیت ریت ویدیو | 32 Kbps~6 Mbps |
فرمت های صدا | G.711/G.711U/ADPCM |
نرخ بیت ریت صدا | 8K~48Kbps |
رزولوشن های تصویر | 1920×1080 |
Main Stream | PAL: 25fps (1920×1080) |
Sub Stream | (PAL: 25fps (704×576 |
Third Stream | N/A |
تنظیمات تصویر | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
سایر قابلیت ها تصویر | BLC/3D DNR/HLC |
همپوشانی تصویر | بله |
مه زدایی | بله |
پوشش حریم خصوصی | Yes, 4 regions |
هشداردهنده | Motion Detection, Mask Alarm, IP Address Conflict |
تجزیه و تحلیل ویدئو | Tripwire, Perimeter |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
ANR | بله (با NVR مختص) |
سازگاری سیستم | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
اتصال از راه دور | Max 7 |
ورژن کلاینت | Easy7, EasyLive, AIMS |
رابط ارتباطی | 1 RJ45 10M/ 100M self adaptive Ethernet port |
ورودی و خروجی صدا | Built-in Mic |
ورودی و خروجی هشدار | N/A |
شیار کارت حافظه | Built-in Micro SD card slot, up to 512 GB |
دکمه تنظیم مجدد (Reset) | دارد |
شرایط کاری | -40 C to 60 C 95% RH |
منبع تغذیه | DC 12V±25%, PoE |
مصرف برق | MAX: 6W(12V) MAX: 7W(POE) |
سیستم های حفاظتی | IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
ابعاد | 160.8 68×74.5mm |
وزن | 0.48Kg |
جنس بدنه | فلز |
دستگاه های NVR اپلینکس
دستگاه NVR اپلینکس مدل NV1021
موجود است
ورودی ویدیو | ۱۰ کانال |
---|---|
ورودی صدای دوطرفه | ندارد |
پهنای باند | Income 50Mbps; Outgoing 40Mbps |
خروجی HDMI | 2560×1440 |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | ۱/۳/۴/۵/۶/۷/۸/۹/۱۰ |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 6MP |
قابلیت پیش نمایش | 1x6MP,1x5MP,1x4MP,1x3MP,4x1080P,8x720P,10x4CIF |
باز پخش همزمان | 1x6MP,1x5MP,1x4MP,1x3MP,3x1080P,4x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | 1 عدد |
ظرفیت | تا ۱۰ ترابایت |
رابط ارتباطی | 1 RJ45 10M/ 100M/1000M self adaptive Ethernet port |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۴/۱ |
رابط USB | ۲ عدد نسخه ۲ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | 10W (without HDD) |
ابعاد | 44x255x231mm |
وزن | 0.8Kg |
دستگاه NVR اپلینکس مدل NV2041
موجود است
ورودی ویدیو | ۲۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 120Mbps; Outgoing 100Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | 1/3/4/6/8/9/10/13/16/20A/20B |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 8MP |
قابلیت پیش نمایش | 1x8MP,1x6MP,2x4MP,2x3MP,4x1080P,8x720P,20x4CIF |
باز پخش همزمان | 1x8MP,1x5MP,2x4MP,2x3MP,4x1080P,8x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | 1 عدد |
ظرفیت | تا ۱۰ ترابایت |
رابط ارتباطی | 1 RJ45 10M/ 100M/1000M self adaptive Ethernet port |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۴/۱ |
رابط USB | ۲ عدد نسخه ۲ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | 10W (without HDD) |
ابعاد | 45.1×255×231mm |
وزن | 0.9Kg |
دستگاه NVR اپلینکس مدل NV2042
موجود است
ورودی ویدیو | ۲۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 120Mbps; Outgoing 100Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | 1/3/4/6/8/9/10/13/16/20A/20B |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 8MP |
قابلیت پیش نمایش | 1x8MP,1x6MP,2x4MP,2x3MP,4x1080P,8x720P,20x4CIF |
باز پخش همزمان | 1x8MP,1x5MP,2x4MP,2x3MP,4x1080P,8x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | ۲ عدد |
ظرفیت | تا ۱۰ ترابایت هر هارد دیسک |
رابط ارتباطی | 1 RJ45 10M/ 100M/1000M self adaptive Ethernet port |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۴/۱ |
رابط USB | ۲ عدد نسخه ۲ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | 10W (without HDD) |
ابعاد | 47.1×272.6×341mm |
وزن | 1.6Kg |
دستگاه NVR اپلینکس مدل NV2042-16P
موجود است
ورودی ویدیو | ۴۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 200Mbps; Outgoing 200Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | ۱/۳/۴/۶/۸/۹/۱۰/۱۳/۱۶/۲۰/۲۵/۳۶/۴۰ |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 12MP |
قابلیت پیش نمایش | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
باز پخش همزمان | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 16x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | 2 عدد |
ظرفیت | تا ۱۰ ترابایت هر هارد دیسک |
رابط ارتباطی | 2 عدد پورت RJ45 10M/ 100M/1000M self adaptive Ethernet |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۴/۱ |
رابط USB | ۱عدد نسخه ۲ ، ۱ عدد نسخه ۳ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | ۲۵ وات بدون هارد |
ابعاد | 47.5×277×440mm |
وزن | 3Kg |
پورت POE | 16 عدد RJ45 10/100M |
توان هر پورت | 30W |
حداکثر جریان هر پورت | 600mA |
دستگاه NVR اپلینکس مدل NV4042
موجود است
ورودی ویدیو | ۴۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 200Mbps; Outgoing 200Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | ۱/۳/۴/۶/۸/۹/۱۰/۱۳/۱۶/۲۰/۲۵/۳۶/۴۰ |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 12MP |
قابلیت پیش نمایش | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
باز پخش همزمان | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 16x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | ۲ عدد |
ظرفیت | تا ۱۰ ترابایت هر هارد دیسک |
رابط ارتباطی | 2 عدد پورت RJ45 10M/ 100M/1000M self adaptive Ethernet |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۱۶/۴ |
رابط USB | ۱عدد نسخه ۲ ، ۱ عدد نسخه ۳ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | ۲۵ وات بدون هارد |
ابعاد | 47.5×277×440mm |
وزن | 2.3Kg |
دستگاه NVR اپلینکس مدل NV4044
موجود است
ورودی ویدیو | ۴۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 200Mbps; Outgoing 200Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | ۱/۳/۴/۶/۸/۹/۱۰/۱۳/۱۶/۲۰/۲۵/۳۶/۴۰ |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 12MP |
قابلیت پیش نمایش | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
باز پخش همزمان | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 16x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | ۴ عدد |
ظرفیت | تا ۱۰ ترابایت هر هارد دیسک |
Array Type | JBOD, RAID0/1/5/6/10 |
رابط ارتباطی | 2 عدد پورت RJ45 10M/ 100M/1000M self adaptive Ethernet |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۴/۱ |
رابط USB | ۱عدد نسخه ۲ ، ۱ عدد نسخه ۳ |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | ۲۵ وات بدون هارد |
ابعاد | 75×347×440mm |
وزن | 3.3Kg |
دستگاه NVR اپلینکس مدل NV4054
موجود است
ورودی ویدیو | ۴۰ کانال |
---|---|
ورودی صدای دوطرفه | 1 عدد : 3.5mm |
پهنای باند | Income 200Mbps; Outgoing 200Mbps |
خروجی HDMI | ۱عدد ( ۲۱۶۰×۳۸۴۰) |
خروجی VGA | 1عدد ( 1920×1080) |
تقسیم صفحه نمایش | ۱/۳/۴/۶/۸/۹/۱۰/۱۳/۱۶/۲۰/۲۵/۳۶/۴۰ |
خروجی صدا | 1 عدد RCA |
فرمت های رمزگشایی | H.265+/H.265/H.264 |
رزولوشن ضبط ویدیو | حداکثر تا 12MP |
قابلیت پیش نمایش | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
باز پخش همزمان | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 16x720P |
قابلیت رمزنگاری ویدیو | دارد |
پورت SATA | ۴ عدد |
ظرفیت | تا ۱۰ ترابایت هر هارد دیسک |
Array Type | JBOD, RAID0/1/5/6/10 |
رابط ارتباطی | 2 عدد پورت RJ45 10M/ 100M/1000M self adaptive Ethernet |
ورودی و خروجی صدا | ندارد |
ورودی و خروجی هشدار | ۱۶/۴ |
رابط USB | ۱عدد نسخه ۲ ، ۱ عدد نسخه ۳ |
رابط سریال | دارد |
پروتکل های ارتباطی | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
سازگاری سیستم | ONVIF (PROFILE S/TONVIF (PROFILE S/T), SDK, P2P |
شرایط کاری | منفی ۱۰ درجه الی ۵۵ درجه سانتیگراد |
منبع تغذیه | DC 12V,3.3A |
مصرف برق | ۴۰ وات بدون هارد |
ابعاد | 75×347×440mm |
وزن | 3.8Kg |
دوربین داهوا دام DAHUA DH-HAC-HDW1200MP
موجود است
وزن | 270 g |
---|---|
برند | داهوا (Dahua) |
وضوح و رزولوشن دوربین مداربسته | 2 مگاپیکسل, Max 30fps@1080P |
نوع لنز | 3.6mm fixed lens (2.8mm optional), 3.6mm ثابت (Fixed), 3.6mm-3MP |
نوع دوربین مداربسته | دام (Dome) |
ضد آب بودن | بله, گواهی IP67, ضد نفوذ آب و گردو خاک . مقاوم در شرایط آب و هوایی سخت با پروتکل استاندار حفاظتی جهانی IP 67 |
کیفیت ضبط فیلم دوربین مداربسته | 2 مگاپیکسل رزولوشن دوربین با کیفیت 1080P (1920×1080), 25/30fps@1080P, 25/30/50/60fps@720P, 25 تا 30 فریم بر ثانیه روی FULL HD) 1080P) |
قابلیت ضد نور | DWDR دیجیتال |
طول برد (فاصله) دید در شب | 30 متر طول برد دید در شب |
سایر مشخصات | 2D-DNR, AGC, AWD, BLC, DAY/NIGHT-ICR, DWDR, HLC, OSD Menu, SMART IR |
زاویه دید | 100 درجه رو لنز 3.6 میلی متری ثابت, 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) |
جنس بدنه دوربین مداربسته | جنس بدنه دوربین از فلز آلومینیوم, فلزی |
نوع دید در شب | دید در شب سیاه و سفید – مادون قرمز (Dahua Smart IR), قابلیت شناسایی خودکار روز و شب و تغییر مد (حالت) ضبط دوربین مدار بسته |
نوع تکنولوژی دوربین مداربسته | HDCVI |
میکروفون داخلی | ندارد |
دوربین داهوا مداربسته بالت DAHUA HFW1200DP
موجود است
وزن | 590 g |
---|---|
برند | داهوا (Dahua) |
وضوح و رزولوشن دوربین مداربسته | 2 مگاپیکسل, Max 30fps@1080P |
نوع لنز | 3.6mm fixed lens (6mm, 8mm optional), 3.6mm ثابت (Fixed), 3.6mm-3MP |
نوع گارانتی | 2 سال گارانتی اصلی معتبر |
نوع دوربین مداربسته | بالت (Bullet), بالت کیس بزرگ, بالت یا لوله ای |
ضد آب بودن | بله, گواهی IP67, ضد نفوذ آب و گردو خاک . مقاوم در شرایط آب و هوایی سخت با پروتکل استاندار حفاظتی جهانی IP 67 |
کیفیت ضبط فیلم دوربین مداربسته | 1080P (1920×1080), 25/30fps@1080P, 25/30/50/60fps@720P, 2 مگاپیکسل رزولوشن دوربین با کیفیت 1080P (1920×1080), 25/30fps@1080P, 25/30/50/60fps@720P, 25 تا 30 فریم بر ثانیه روی 1080P, 25 تا 60 فریم بر ثانیه روی 720P, 25 تا 30 فریم بر ثانیه روی FULL HD) 1080P) |
قابلیت ضد نور | DWDR دیجیتال |
طول برد (فاصله) دید در شب | 80 متر رنج دید در شب, 80 متر, دو Array قدرتمند |
سایر مشخصات | 2D-DNR, AGC, AWD, BLC, DAY/NIGHT-ICR, DWDR, HLC, OSD Menu, SMART IR, دارای استاندارهای بین المللی CE – FC – UL |
زاویه دید | 100 درجه رو لنز 3.6 میلی متری ثابت, 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) |
دید در شب | دید در شب مخفی ندارد |
نوع تکنولوژی دوربین مداربسته | HDCVI |
نوع دید در شب | دید در شب سیاه و سفید – مادون قرمز (Dahua Smart IR), سیاه و سفید – مادون قرمز, قابلیت شناسایی خودکار روز و شب و تغییر مد (حالت) ضبط دوربین مدار بسته |
دوربین داهوا DAHUA DH-HAC-T1A21P
موجود است
وزن | 95 |
---|---|
برند | از سری کوپر داهوا (Dahua Cooper Series CCTV Cameras), داهوا (Dahua) |
نوع تکنولوژی دوربین مداربسته | HDCVI |
وضوح و رزولوشن دوربین مداربسته | 1080P (1920×1080), 1080p@30 fps, 1920 (H)×1080 (V), 2MP, 2 مگاپیکسل, Max 30fps@1080P |
کیفیت ضبط فیلم دوربین مداربسته | 25 تا 30 فریم بر ثانیه روی FULL HD) 1080P) |
طول برد (فاصله) دید در شب | 20 متر طول برد دید در شب, دید در شب هوشمند (SMART IR Night Vision) |
جنس بدنه دوربین مداربسته | پلاستیکی مقاوم |
برد Board داخل دوربین مداربسته | Dahua Main Board, برد داهوا |
زاویه دید | 93 درجه روی لنز 3.6 میلی متری ثابت و حالت افقی دوربین مداربسته, 93 درجه زاویه دید افقی روی لنز 3.6 میلی متری و در حالت مورب و افقی |
نوع دید در شب | پشتیبانی از تکنولوژی ICR Smart Auto Detect, دید در شب سیاه و سفید – مادون قرمز (Dahua Smart IR), سیاه و سفید – مادون قرمز, قابلیت شناسایی خودکار روز و شب و تغییر مد (حالت) ضبط دوربین مدار بسته |
نوع لنز | 3.6mm fixed lens (2.8mm, 6mm optional), 3.6mm ثابت (Fixed), 3.6mm-3MP, ثابت, لنز ثابت 3.6mm (2.8mm، 6mm اختیاری) |
میکروفون داخلی | ندارد |
قابلیت ضد نور | DWDR, DWDR دیجیتال, دارد |
